AC Refrigerant: Proper Charge, Overcharge, and Undercharge Symptoms
Understanding refrigerant, why proper charge matters, and red flags to watch for
AC Refrigerant: Proper Charge, Overcharge, and Undercharge Symptoms
Video walkthrough coming soon
What is refrigerant and what does it do?
Refrigerant is a chemical fluid in AC and heat pump systems that cycles between liquid and gas states to absorb heat indoors and reject it outdoors. As refrigerant flows through the indoor coil, it evaporates (turns to gas), absorbing heat from indoor air — cooling your home. Outdoor, the gas is compressed and condenses back to liquid (in the outdoor unit), rejecting heat outdoors. Then it cycles back to the indoor coil and repeats. The amount of heat transferred depends on refrigerant charge (amount in the system). R-410A is the current standard refrigerant (replacing R-22, phased out due to ozone depletion). Each AC system is designed for a specific charge amount (typically 3-15 pounds depending on system size), measured in pounds or ounces.
Why proper charge is critical
The system is engineered for a specific amount of refrigerant. Too little (undercharge): cooling is reduced, the system works harder and uses more electricity, the evaporator coil frosts (ice forms because pressure is too low), and the compressor overheats. Too much (overcharge): the system is inefficient, discharge pressure is too high (damaging to the compressor), cooling is reduced (counterintuitively), and the compressor can suffer liquid slugging (damage from liquid refrigerant reaching the compressor). Proper charge is when the system operates at design superheat and subcooling — specific temperature targets that indicate the exact right amount. An undercharged system cools poorly and damages the compressor through overheating. An overcharged system also damages the compressor and wastes electricity. Only 10-20% variance from design charge is acceptable.
Identifying undercharge symptoms
An undercharged AC system shows: (1) Reduced cooling — can't reach setpoint or cools slowly. (2) Short runtime — cooling runs for only a few minutes then cycles off without maintaining temperature (short-cycling). (3) Frost or ice on the indoor coil or refrigerant lines (visible when checking the system). (4) Very cold indoor coil temperature but poor actual cooling output. (5) High amp draw from the compressor (working harder than it should). (6) System operates but doesn't feel cold enough. Homeowners mistakenly add refrigerant thinking 'more is better,' but topping off an undercharged system without addressing the underlying problem is a temporary band-aid. The real issue is usually a leak. Any undercharge requires leak detection and repair, not just refrigerant addition.
Identifying overcharge symptoms
An overcharged AC system shows: (1) High discharge pressure (measured at the high-side port, typically 350-450 psi at full load; overcharge pushes this above 450 psi). (2) Reduced cooling despite high pressure. (3) Very hot outdoor coil (unable to condense refrigerant properly). (4) System shuts down on high-pressure switch (safety mechanism). (5) Higher electrical consumption. (6) Compressor operates hotter than normal (elevated discharge gas temperature). (7) System seems to cool initially but then poor performance develops (as pressure rises with indoor heat load). Overcharge causes compressor damage through heat and pressure stress. This is why 'topping off' refrigerant without proper diagnosis is dangerous — it can overage the system and shorten compressor life.
R-410A vs R-22 and the phase-out
R-22 (Freon) was the standard refrigerant from the 1980s through 2010. It depletes the stratospheric ozone layer, so the EPA phased out new R-22 production and imports. R-410A (Puron) became the replacement standard in 2010. Systems built before 2010 typically use R-22; newer systems use R-410A. They are NOT interchangeable — R-410A systems operate at higher pressures and require different equipment. R-22 is still available (used for servicing existing systems) but costs $40-60 per pound (vs $25-40 for R-410A). As R-22 becomes scarce, servicing old systems becomes expensive. This is one reason to replace old AC systems — beyond efficiency, repair costs for aged R-22 systems escalate. Proper charge is especially important in R-22 systems because leaks are harder to find and refrigerant is expensive to replace.
Why topping off is a band-aid solution

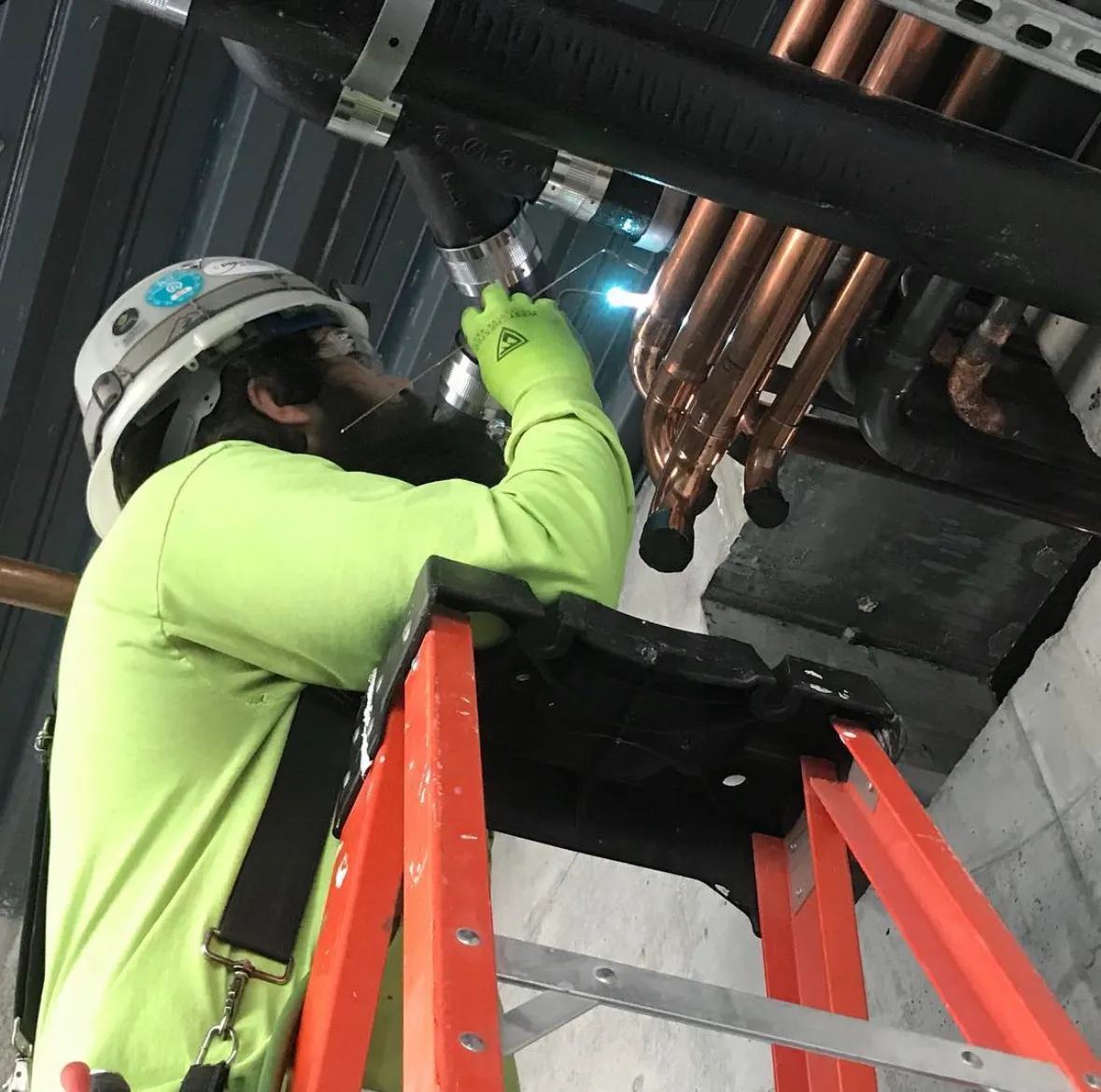

When an AC system loses refrigerant, it's always a leak — refrigerant doesn't 'burn up' or disappear. Adding refrigerant without fixing the leak is temporary (lasting weeks to months before pressure drops again). The leak continues, expelling refrigerant into the atmosphere (illegal under EPA regulations for technicians without a license). Repeat service calls add up to more than the cost of a proper repair. A HVAC technician should: (1) Test the system to determine it's undercharged. (2) Pressurize the system and use leak detection to find the source (electronic detector, dye, soap bubbles, etc.). (3) Repair the leak (braze a fitting, replace a coil, etc.). (4) Vacuum the system (remove air and moisture). (5) Recharge with the correct amount. This takes 2-4 hours and costs $150-400 labor plus parts. Quick 'top off' service ($50-100) saves money upfront but costs more in the long run.
